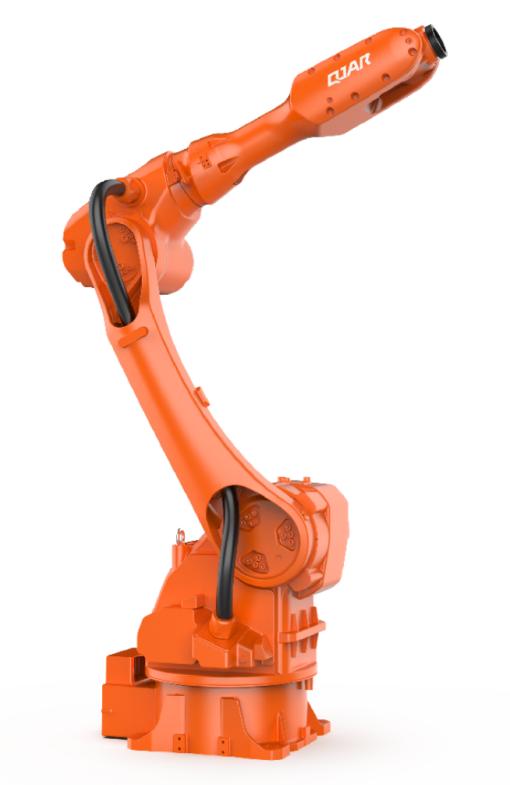

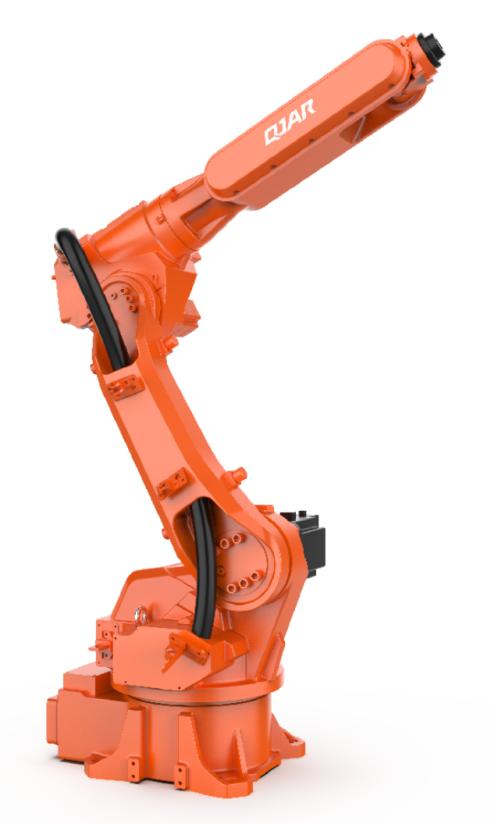

Model | QJR6S-1 | QJRH4-1A | QJR6-1400H | QJR6-2000H | QJR6-1 | QJR6-1500 | QJR6-3 | QJR6-2100 | QJR10-1900 | QJR10-2000 | QJR12-1700 | QJR20-1600(None Explosion-proof) | QJR20-1600(Explosion-proof) | QJR20-2000(None Explosion-proof) | QJR20-2000(Explosion- proof) | QJR25-1800 | QJR30-1600 | |
Photo | ||||||||||||||||||
Axis Number | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Payload | 3/6kg | 4kg | 6kg | 6kg | 6kg | 6kg | 6kg | 6kg | 10kg | 10kg | 12kg | 20kg | 20kg | 20kg | 20Kg | 25kg | 30kg | |
Repeat Positioning | ±0.03mm | ±0.05mm | ±0.08mm | ±0.08mm | ±0.03mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | +0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | |
Max Armspan | 750.6mm | 1410.5mm | 1461mm | 2014mm | 1441mm | 1538mm | 2001mm | 2121mm | 1943mm | 2001mm | 1792mm | 1668mm | 1668mm | 2001.7mm | 2001.7mm | 1852 | 1668mm | |
Motion Range | J1 | ±172º | ±168º | ±174º | ±175º | ±168° | ±168° | ±172° | ±175° | ±175° | ±172° | ±175° | ±172º | ±172º | +172° | ±172° | +172° | +172° |
J2 | ﹢132º,﹣82º | ﹢150º,﹣89º | ﹢159º,﹣93º | ﹢159º,﹣95º | +150°,-86° | +159°, ﹣93° | +166°,-100° | +159°, ﹣95° | +159°, ﹣95° | +147°,-115° | + 159°-95° | ﹢147º,﹣115º | ﹢147º,﹣115º | +150°,-110° | +150°, -110° | +165°,- 100° | +147°,- 115° | |
J3 | ﹢65º,﹣190º | ﹢85º,﹣111º | ﹢95º,﹣125º | ﹢95º,﹣125º | +87°,-110° | + 95°,- 125 | +83°,-92° | +95°,-125° | + 95°,- 125° | +83°,-98° | +95°- 125° | ﹢83º,﹣98º | ﹢83º,﹣98º | +85°- 150° | +85°, -150° | + 83°,-130° | + 83°,-98° | |
J4 | ±172º | ±167º | ±183º | ±183º | ±170° | ±185° | ±170° | ±185° | ±185° | ±167° | ±185° | ±167º | ±167º | ±185° | ±185° | ±185° | ±185° | |
J5 | ±120º | ﹢58º,﹣217º | ﹢129º,﹣126º | +129°,-126° | ±125° | ±115° | ±125° | ±115° | ±115° | ±115° | ±115° | ±115º | ±115º | ±115° | ±115° | ±126° | ±126° | |
J6 | ±360º | ±360º | ±360º | ±360º | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360º | ±360º | ±360° | ±360° | ±360° | ±360° | |
Max Speed | J1 | 366 °/s | 200°/s | 235°/s | 189 °/s | 200 °/ s | 234°/s | 171 °/ s | 189°/s | 189°/s | 154 °/ s | 189°/s | 154º/s | 154º/s | 177°/s | 177 °/ s | 177°/s | 172°/s |
J2 | 343 °/s | 200°/s | 235°/s | 189 °/s | 177 °/ s | 234°s | 171 °/ s | 189°/s | 189°/s | 154 °/ s | 189°/s | 154º/s | 154º/s | 177°/s | 177 °/ s | 177°/s | 177°/s | |
J3 | 366 °/s | 234°/s | 240°/s | 189 °/s | 200 °/ s | 240°/s | 189 °/ s | 189°/s | 189°/s | 171 °/ s | 189°/s | 171º/s | 171º/s | 189°/s | 189 °/ s | 189°/s | 189°/s | |
J4 | 372 °/s | 349°/s | 361°/s | 360 °/s | 429 °/ s | 372°/s | 429 °/ s | 372°/s | 372°/s | 401 °/ s | 372º/s | 355º/s | 355º/s | 429°/ s | 429 °/ s | 429°/s | 429°/s | |
J5 | 475 °/s | 355°/s | 361°/s | 320 °/s | 429 °/ s | 630°/s | 446 °/ s | 573°/s | 573°/s | 515 °/ s | 573°/s | 355º/s | 355º/s | 412°/s | 412 °/ s | 412°/s | 412°/s | |
J6 | 658 °/s | 481°/s | 974°/s | 974 °/s | 601 °/ s | 687°/s | 572 °/ s | 687°/s | 687°/s | 658 °/ s | 687°/s | 355º/s | 355º/s | 515°/s | 515 °/ s | 429°/s | 429°/s | |
Allowable Torque | J4 | 11 N·m | 10.51N·m | 28N·m | 28N·m | 28N·m | 28Nm | 28N·m | 28Nm | 28Nm | 28N·m | 28N·m | 45N·m | 45N·m | 83.3N·m | 83.3 N.m | 83.3N·m | 83.3N·m |
J5 | 11 N·m | 10.51N·m | 14.4N·m | 14.4N·m | 28N·m | 28Nm | 28N·m | 28Nm | 28Nm | 28N·m | 28N·m | 45N·m | 45N·m | 34Nm | 34 N.m | 43.35N·m | 43.3N·m | |
J6 | 5.3 N·m | 2.94N·m | 5N·m | 5N·m | 26.4N·m | 26.4N·m | 26.4N·m | 26.4Nm | 26.4N·m | 26.4N·m | 26.4N·m | 40N·m | 40N·m | 28N·m | 28 N.m | 37.4Nm | 37.4Nm | |
Inertia Moment | J4 | 0.5 kg·m² | 0.38kg·m² | 1.2kg·m² | 1.2kg·m² | 1.1kg·m² | 1.1kg·m² | 1.1kg·m² | 1.1kg·m² | 1.1kg·m² | 1.1kg·m² | 1.2kg·m² | 3.5kg·m² | 3.5kg·m² | 4.1kg·m² | 4.1 kg.m² | 5.4kg·m² | 6.4kg·m² |
J5 | 0.5 kg·m² | 0.38kg·m² | 0.8kg·m² | 0.8kg·m² | 1kg·m² | 1kg·m² | 1kg·m² | 1kg·m² | 1kg·m² | 1kg·m² | 1.4kg·m² | 3.5kg·m² | 3.5kg·m² | 3.8kg·m² | 3.8 kg.m² | 5.37kg·m² | 7.2kg·m² | |
J6 | 0.2 kg·m² | 0.03kg·m² | 0.1kg·m² | 0.1kg·m² | 0.7kg·m² | 0.7kg·m² | 0.7kg·m² | 0.7kg·m² | 0.7kg·m² | 0.7kg·m² | 0.7kg·m² | 2.5kg·m² | 2.5kg·m² | 1.1kgm | 1.1 kg.m² | 1.44kg·m² | 2.3kg·m² | |
Robot Body Weight | 39kg | 150kg | 150kg | 230kg | 170kg | 170kg | 225kg | 245kg | 245kg | 275kg | 240kg | 270kg | 270kg | 270kg | 270 kg | 270kg | 270kg | |
Power Capacity | 1.5kVA | 2.7kVA | 2.6kVA | 3.4kVA | 2.9kVA | 2.9kVA | 3.2kVA | 3.6kVA | 3.6kVA | 3.7kVA | 3.6kVA | 3.7kVA | 3.7kVA | 3.7kVA | 3.7kVA | 3.8kVA | 3.8kVA | |
Power Supply | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | One phase 220V ±10% | |
Cabinet Size | 610*270*433mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*920mm | 600*480*1270mm | 600*480*920mm | 600*480*1270mm | 600*480*1270mm | 600*480*920mm | |
Cabinet Weight | 35kg | 95kg | 95kg | 95kg | 95kg | 95kg | 95kg | 95kg | 95kg | 95kg | 95kg | 95kg | 120kg | 95kg | 120kg | 120kg | 95kg | |
Installing Form | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | Ground Mounted/ Ceiling | |
Application | Handling, assembly, sorting, loading and unloading etc. | Welding With welding package(welding machine aotai AMIG 350R or Megmeet Ehave CM350AR, wire feeder, anti-collision welding gun) | Welding With welding package(welding machine aotai AMIG 350R or Megmeet Ehave CM350AR, wire feeder, anti-collision welding gun) | Welding With welding package(welding machine aotai AMIG 350R or Megmeet Ehave CM350AR, wire feeder, anti-collision welding gun) | loading and unloading, handling, sorting, assembly etc. | Handling, assembly, sorting, loading and unloading etc. | Handling, assembly, sorting, loading and unloading etc. | Handling, assembly, sorting, loading and unloading etc. | Handling, assembly, sorting, loading and unloading etc. | Handling loading and unloading, handling, sorting, assembly etc. | Handling, assembly, sorting, loading and unloading etc. | loading and unloading, handling, sorting, assembly etc. | Painting; loading and unloading, handling, sorting, assembly etc. | Handling, assembly, sorting, loading and unloading etc. | Handling loading and unloading, handling, sorting, assembly etc. | Handling, assembly, sorting, loading and unloading etc. | Handling, assembly, sorting, loading and unloading etc. |
Model | EVS3-400H | EVS6-500H | EVS6-600H | EVS6-700H | EVS10-600H | EVS10-700H | EVS10-800H | EVS20-800H | EVS20-900H | EVS20-1000H | EVS6-500U | EVS6-600U | EVS6-700U | |
Picture | ||||||||||||||
Function | material handling, 3C products | material handling, 4C products | material handling, 5C products | material handling, 6C products | material handling, 7C products | material handling, 8C products | material handling, 9C products | material handling, 10C products | material handling, 11C products | material handling, 12C products | material handling, 13C products | material handling, 14C products | material handling, 15C products | |
Total axes | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Maximum reach | 400mm | 500mm | 600mm | 700mm | 600mm | 700mm | 800mm | 800mm | 900mm | 1000mm | 500mm | 600mm | 700mm | |
Payload | rated load | 1kg | 2kg | 2kg | 2kg | 5kg | 5kg | 5kg | 10kg | 10kg | 10kg | 2kg | 2kg | 2kg |
maximum load | 3kg | 6kg | 6kg | 6kg | 10kg | 10kg | 10kg | 20kg | 20kg | 20kg | 6kg | 6kg | 6kg | |
Permissible inertial torque of rotating axis | rated torque | 0.005kg·m2 | 0.01kg·m2 | 0.01kg·m2 | 0.01kg·m2 | 0.05kg·m2 | 0.05kg·m2 | 0.05kg·m2 | 0.05kg·m2 | 0.05kg·m2 | 0.05kg·m2 | 0.01kg·m2 | 0.01kg·m2 | 0.01kg·m2 |
maximum torque | 0.05kg·m2 | 0.12kg·m2 | 0.12kg·m2 | 0.12kg·m2 | 0.45kg·m2 | 0.45kg·m2 | 0.45kg·m2 | 0.45kg·m2 | 0.45kg·m2 | 0.45kg·m2 | 0.12kg·m2 | 0.12kg·m2 | 0.12kg·m2 | |
Repeated positioning accuracy | horizontal coordinate | ±0.01mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.02mm | ±0.02mm | ±0.02mm |
z coordinate | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | |
rotation angle | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | |
Max speed | 1st axis | 6000mm/s | 6150mm/s | 6800mm/s | 7450mm/s | 9100mm/s | 9800mm/s | 10600mm/s | 9940mm/s | 11250mm/s | 8940mm/s | 6150mm/s | 6800mm/s | 7450mm/s |
2nd axis | 6000mm/s | 6150mm/s | 6800mm/s | 7450mm/s | 9100mm/s | 9800mm/s | 10600mm/s | 9940mm/s | 11250mm/s | 8940mm/s | 6150mm/s | 6800mm/s | 7450mm/s | |
3rd axis (elevating axis) | 1000mm/s | 1100mm/s | 1100mm/sec | 1100mm/sec | 1098mm/s | 1098mm/s | 1098mm/s | 2020mm/s | 2020mm/s | 2020mm/s | 1100mm/s | 1100mm/s | 1100mm/s | |
4th axis (rotation axis) | 2600°/sec | 2000°/sec | 2000°/sec | 2000°/sec | 1581°/sec | 1580°/sec | 1581°/sec | 1400°/sec | 1400°/sec | 1400°/sec | 2000°/sec | 2000°/sec | 2000°/sec | |
Max operating area | 1st axis | ±132° | ±132° | ±132° | ±132° | ±132° | ±132° | ±132° | ±131° | ±131° | ±131° | ±117.2° | ±117.2° | ±117.2° |
2nd axis | ±141° | ±150° | ±150° | ±150° | ±150° | ±150° | ±152° | ±150° | ±150° | ±150° | ±140° | ±140° | ±140° | |
3rd axis (elevating axis) | 150mm | 200mm | 200mm | 200mm | 200mm/300mm | 200mm/300mm | 200mm/300mm | 420mm | 420mm | 420mm | 200mm | 200mm | 200mm | |
4th axis (rotation axis) | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | |
Installation form | Floor mounted | Floor mounted | Floor mounted | Floor mounted | Floor mounted | Floor mounted | Floor mounted | Floor mounted | Floor mounted | Floor mounted | upsied-down mounted | upsied-down mounted | upsied-down mounted | |
Robot weight(without cable) | 16Kg | 19kg | 20Kg | 21Kg | 30kg | 31kg | 32kg | 49kg | 52kg | 55kg | 19kg | 20kg | 21kg | |
Power consumption | 0.7kw | 1.1kw | 1.1kw | 1.1kw | 2.3kw | 2.3kw | 2.3kw | 2.55kw | 2.55kw | 2.55kw | 1.1kw | 1.1kw | 1.1kw | |
Installation environment | Temperature | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ | 0~+45℃ |
Humidity | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | 20~80%RH (no condensation) | |
Vibration | Under 4.9M/S² | Under 4.9M/S² | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | Under 4.9M/S132 | |
Application | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc |
