QJAR medium payload 6 axis robot. It’s a perfect choice for your automation project …
Item No.: QJR50-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days
| Model | QJR50-1 | |
| Axis Number | 6 | |
| Payload | 50kg | |
| Repeat Positioning | ±0.07mm | |
| Max Armspan | 2012.4mm | |
| Motion Range | J1 | ±180º |
| J2 | ﹢135º,﹣90º | |
| J3 | ﹢82º,﹣205º | |
| J4 | ±360º | |
| J5 | ±120º | |
| J6 | ±360º | |
| Max Speed | J1 | 155º/s |
| J2 | 120º/s | |
| J3 | 155º/s | |
| J4 | 250º/s | |
| J5 | 250º/s | |
| J6 | 350º/s | |
| Allowable Torque | J4 | 245N.m |
| J5 | 245N.m | |
| J6 | 147N.m | |
| Inertia Moment | J4 | 12.5kg.m² |
| J5 | 12.5kg.m² | |
| J6 | 4.5kg.m² | |
| Robot Body Weight | 580kg | |
| Power Capacity | 10kVA | |

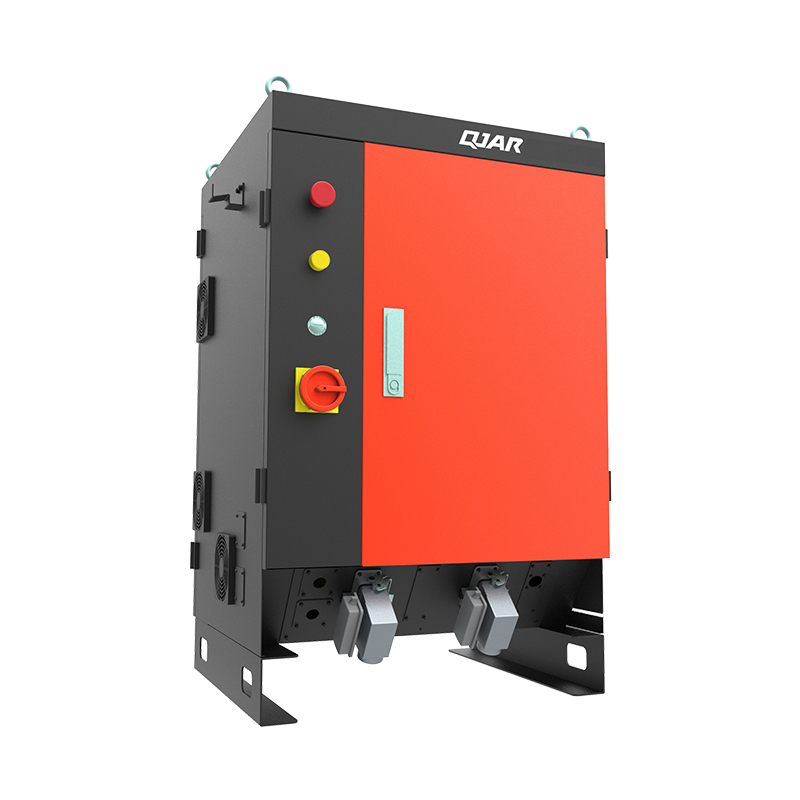

| Cabinet Size | 650*750*1150mm | |
| Cabinet Weight | 120kg | |
| Source | Three-phase four-wire | |
| Installing Form | Ground | |
