An automatic charging robot that can operate stably in complex indoor and outdoor environments

• It has an industry-unique visual positioning system that can adapt to all-weather environments;
• It has the industry’s unique hard-core dark technology that can work stably in an environment of -10~50;
• Through underlying software and hardware adaptation, the 10Kg collaborative robotic arm can meet the charging requirements of DC fast charging with a plug-in and pull-out force of 20Kg;
• For large-scale deployment, a set of hard-core engineering technologies for application and deployment in complex scenarios has been accumulated.
• Commercial application has reached the top competitiveness in the industry.

Function Description

1. Gun insertion and gun withdrawal functions

• Receive instructions from the remote server to insert or draw the gun;
• Receive the command from the charging pile and complete the insertion or withdrawal of the gun;
• Receive instructions from the near-end remote control to insert or withdraw the gun;

2. Perception function

• Automatically sense objects around the robotic arm;
• Automatic collision protection;
• Automatic vehicle sensing;

3. Upload the robot running status

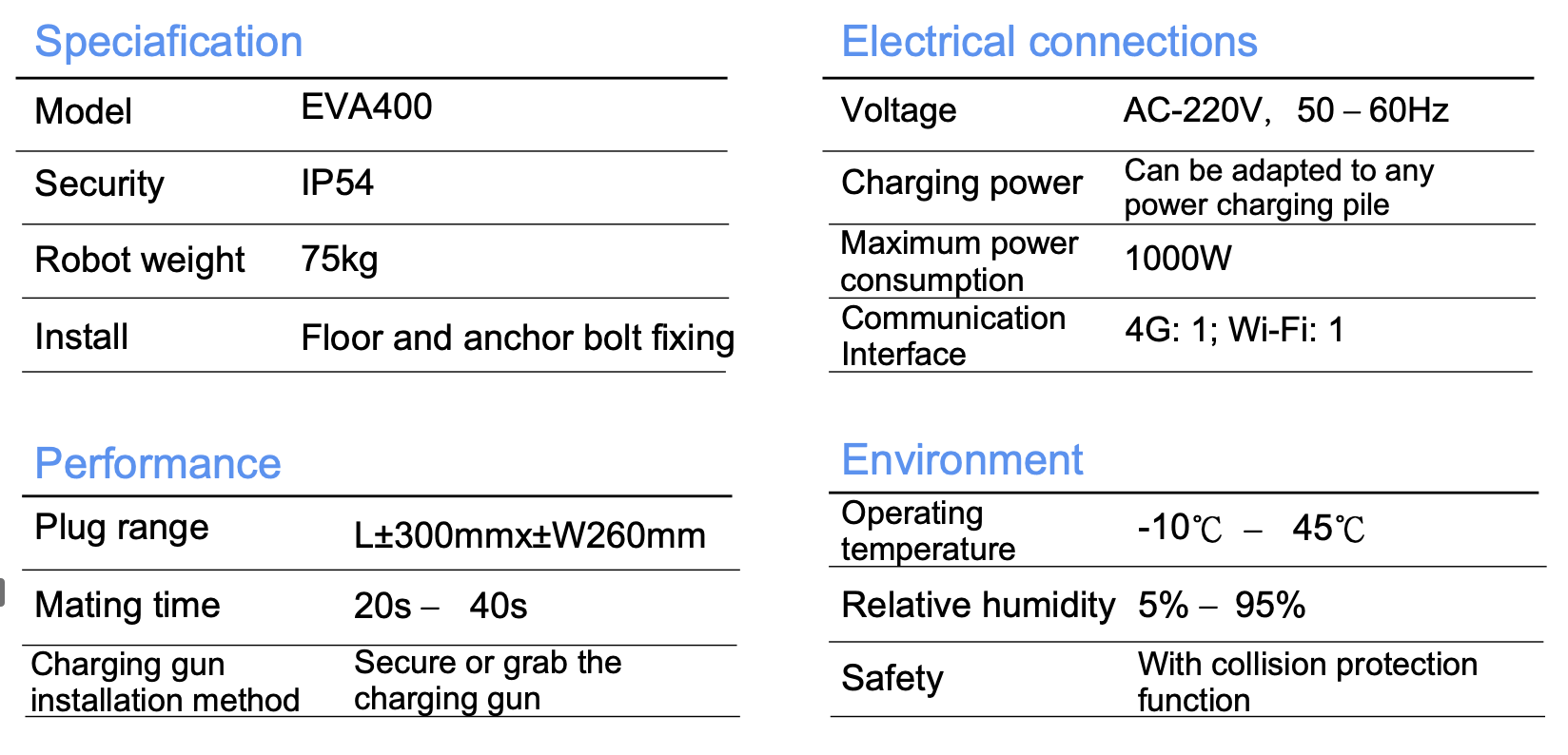

Model Description

Performance Parameters

Installation Effect

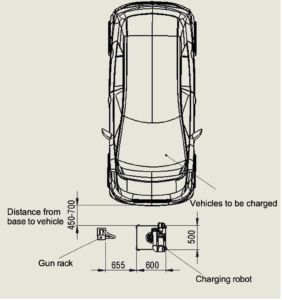

The length and width of the robot base are 600mm*500mm, and the vehicle length
range is about 450-700mm, the height range is 600-800mm, and the vehicle width
range is about ±150mm. The robot and charging pile need to be installed on a hard ground
(such as cement floor). For detailed installation methods of the robot, please refer to the ” Automatic Charging Robot Handling and Installation Instructions”. The robot needs to be placed in a canopy.

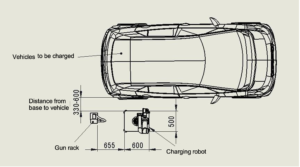

The length and width of the robot base are 600mm*500mm, and the vehicle width range is about 330-600mm, the height range is 850-1100mm, and the vehicle length range is about ±150mm. The robot and charging pile need to be installed on a hard ground (such as cement floor). For detailed installation methods of the robot, please
refer to the “Automatic Charging Robot Handling and Installation Instructions”. The robot needs to be placed in a canopy.
