Functional Features Scara robotwith compact and flexible structure, fast running speed, high transmission accuracy and low noise Robotic automation highly rigid arm design realizes high load and high speed in one package Available in 600 to 1000mm arm span; 1kg to 20kg payload …
Item No.: EVS6-500U
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days
| Model | EVS6-500U | |
| Function | material handling, 13C products | |
| Total axes | 4 | |
| Maximum reach | 500mm | |
| Payload | rated load | 2kg |
| maximum load | 6kg | |
| Permissible inertial torque of rotating axis | rated torque | 0.01kg·m2 |
| maximum torque | 0.12kg·m2 | |
| Repeated positioning accuracy | horizontal coordinate | ±0.02mm |
| z coordinate | ±0.01mm | |
| rotation angle | ±0.01° | |
| Max speed | 1st axis | 6150mm/s |
| 2nd axis | 6150mm/s | |
| 3rd axis (elevating axis) | 1100mm/s | |
| 4th axis (rotation axis) | 2000°/sec | |

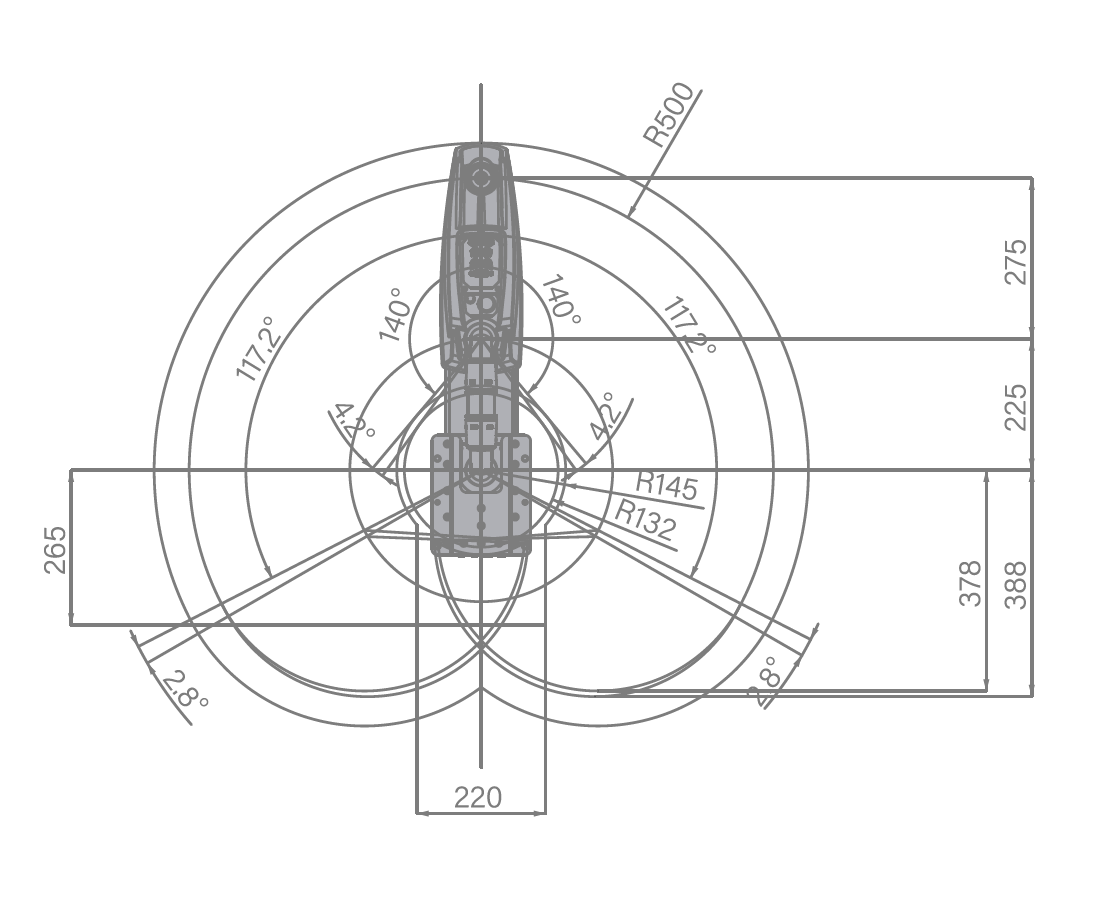

| Max operating area | 1st axis | ±117.2° |
| 2nd axis | ±140° | |
| 3rd axis (elevating axis) | 200mm | |
| 4th axis (rotation axis) | ±360° | |
| Installation form | upsied-down mounted | |
| Robot weight(without cable) | 19kg | |
| Power consumption | 1.1kw | |
| Installation environment | Temperature | 0~+45℃ |
| Humidity | 20~80%RH (no condensation) | |
| Vibration | Under 4.9M/S132 | |
| Application | Capable of working with vision system. And can be applicated in handling，assembly, sorting,material loading and unloading etc | |
