260kg Payload 3153mm Reaching Distance Robotic Arm QJR260-3100M

  • High-speed and stable, all axis operating at low power output simple equipment composition can be used with special palletizing software.
  • Widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.
  • Repeat positioning accuracy: ±0.5mm
  • Armspan: 3153mm
  • Payload: 260kg

PRODUCT DETAILS

Technical Parameters

Model QJR260-3100M
Axis Number 4
Payload 260kg
Repeat Positioning ±0.5mm
Max Armspan 3153mm
Motion Range J1 ±170°
J2 +95°, -42°
J3 +112°, -20°
J4 ±360º
Max Speed J1 97.4°/s
J2 97.4°/s
J3 97.4°/s
J4 298 °/s
Inertia Moment J4 41.6kg.m²
Robot Body Weight 1400kg
Power Capacity 19.3kVA
Cabinet Size 650x750x1150mm
Cabinet Weight 140kg
Source 3 Phase 5 Wire
AC380V(+10%,-10%)
Installing Form Ground
Application Palletizing, handling, loading, picking up, packaging,etc.

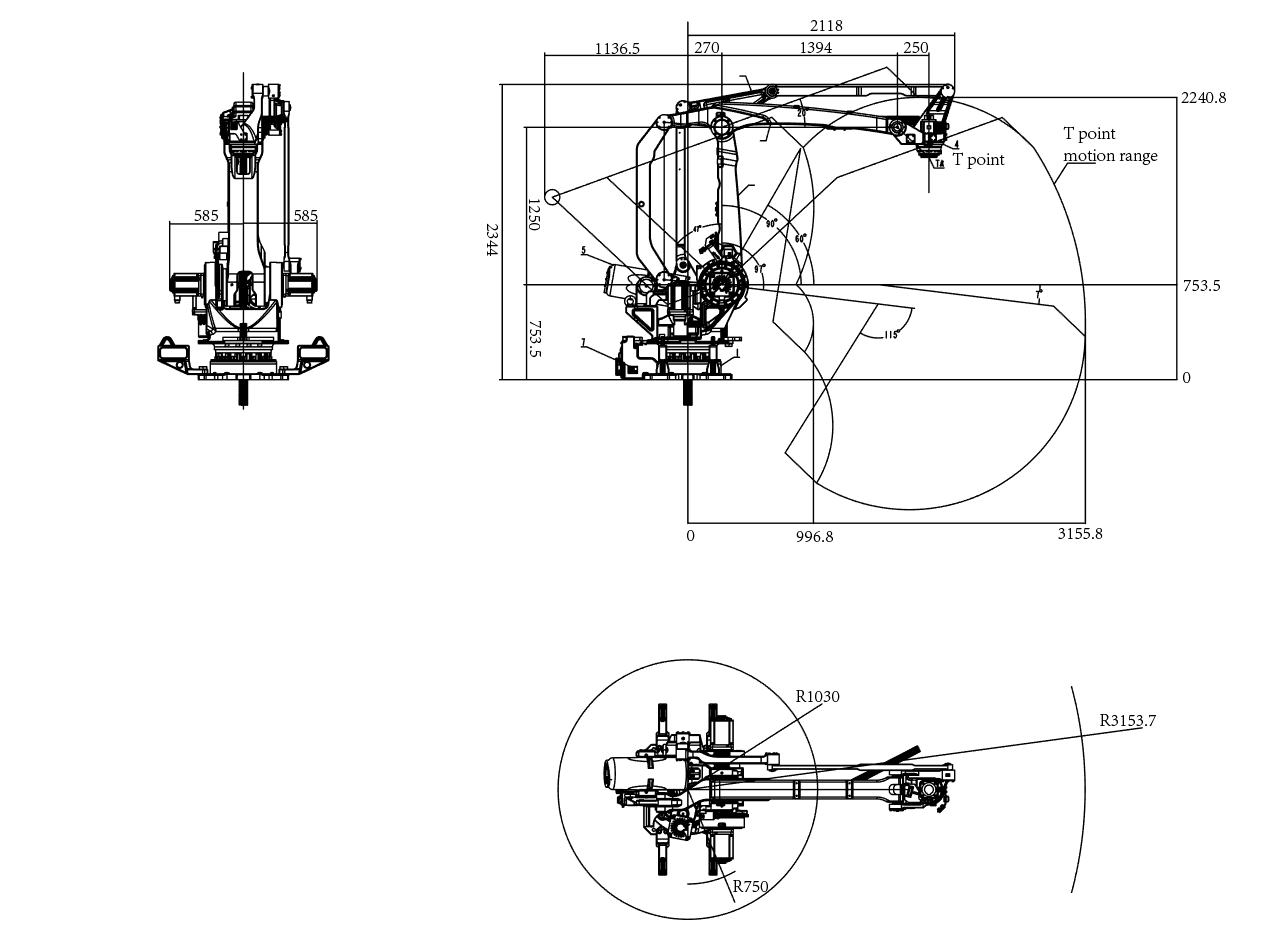

Robot Overall Dimension and Motion Range Drawing

QJR260-3100M Motion Range Drawing

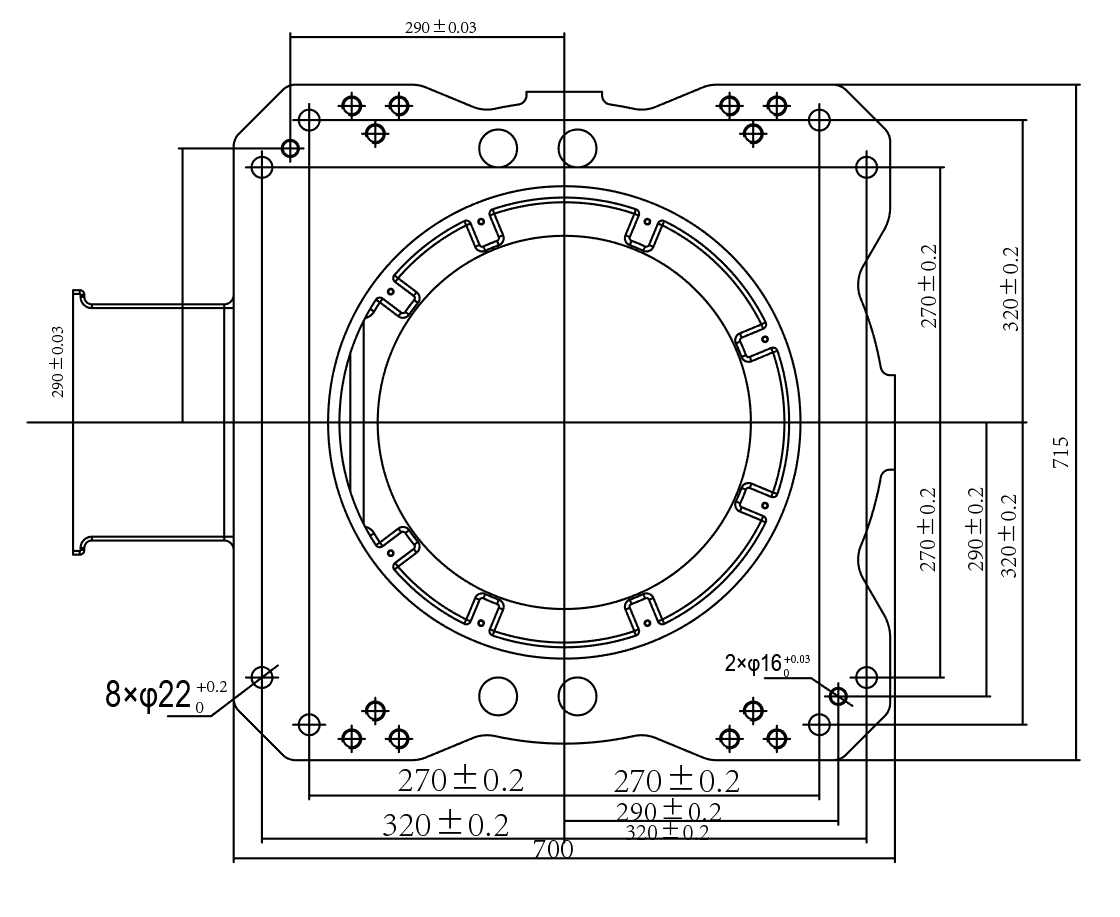

Robot Base Mounting Dimension Drawing

QJR260-3100M Mounting Dimension Drawing

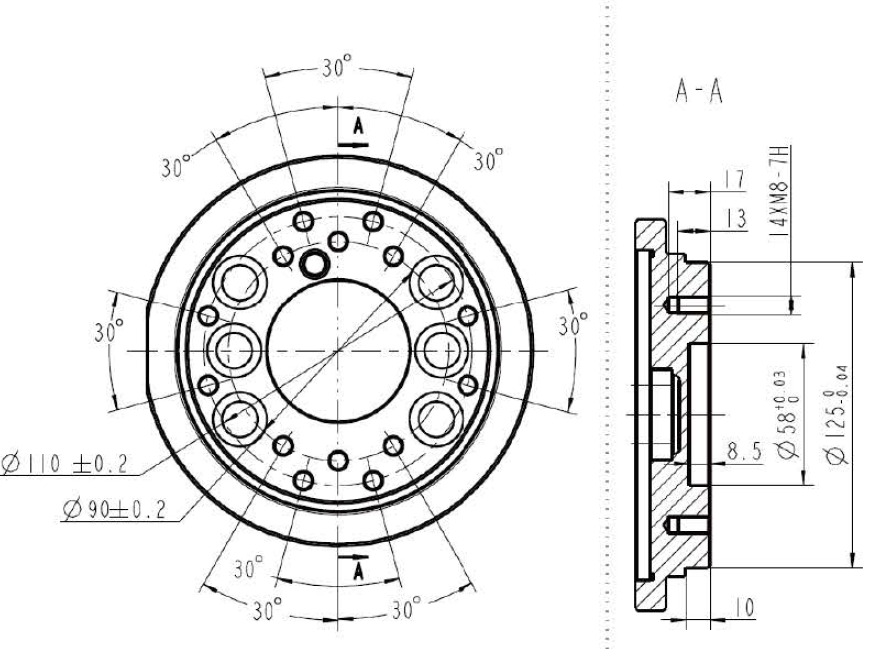

Robot End Installation Dimension Drawing

QJR260-3100M End Installation
