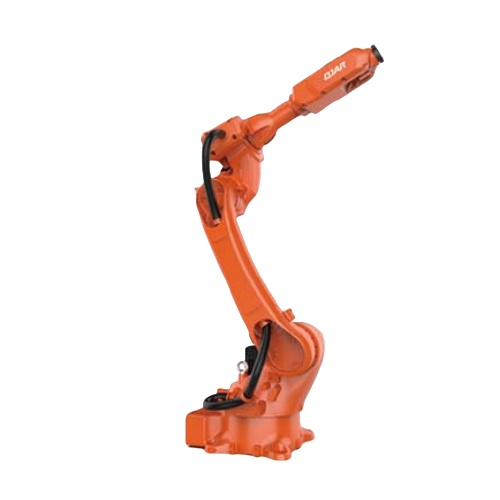

12kg Payload 1792mm Reaching Distance Robotic Arm QJR12-1700

  • The design is highly compact, flexible installation with ground or inverse position.
  • 6 axis robot with large workspace, high running speed, high repeat positioning accuracy, suitable for spraying, loading and unloading, handling, sorting, assembly and other wide range of applications.
  • Repeat positioning accuracy: ±0.05mm
  • Armspan: 1792mm
  • Payload: 12kg

PRODUCT DETAILS

Technical Parameters

Model QJR12-1700
Axis Number 6
Payload 12kg
Repeat Positioning ±0.05mm
Max Armspan 1792mm
Motion Range J1 ±175º
J2 ﹢159º,﹣95º
J3 ﹢95º,﹣125º
J4 ±185º
J5 ±115º
J6 ±360º
Max Speed J1 189º/s
J2 189º/s
J3 189º/s
J4 372’/s
J5 573’/s
J6 687º/s
Allowable Torque J4 28N.m
J5 28N.m
J6 26.4N.m
Inertia Moment J4 1.2kg.m²
J5 1.4kg.m²
J6 0.7kg.m²
Robot Body Weight 240kg
Power Capacity 3.6kVA
Cabinet Size 600*480*920mm
Cabinet Weight 95kg
Source One-phase 220V
Installing Form Ground Mounted/
Ceiling
Application Handling,assembly,
sorting, loading and
unloading etc.
