QJAR light-weight and high-quality 6 axis robot. It’s with high flexibility and fast running speed …
Item No.: QJR10-2000
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days
Brief Introduction
| Model | QJR10-2000 | |
| Axis Number | 6 | |
| Payload | 10kg | |
| Repeat Positioning | ±0.05mm | |
| Max Armspan | 2001mm | |
| Motion Range | J1 | ±172° |
| J2 | +147°，-115° | |
| J3 | +83°，-98° | |
| J4 | ±167° | |
| J5 | ±115° | |
| J6 | ±360° | |
| Max Speed | J1 | 154 °/ s |
| J2 | 154 °/ s | |
| J3 | 171 °/ s | |
| J4 | 401 °/ s | |
| J5 | 515 °/ s | |
| J6 | 658 °/ s | |
| Allowable Torque | J4 | 24.6 N.m |
| J5 | 24.6 N.m | |
| J6 | 9.8 N.m | |
| Inertia Moment | J4 | 0.63 kg.m2 |
| J5 | 0.63 kg.m2 | |
| J6 | 0.1 kg.m2 | |
| Robot Body Weight | 275kg | |
| Power Capacity | 3.6kVA | |

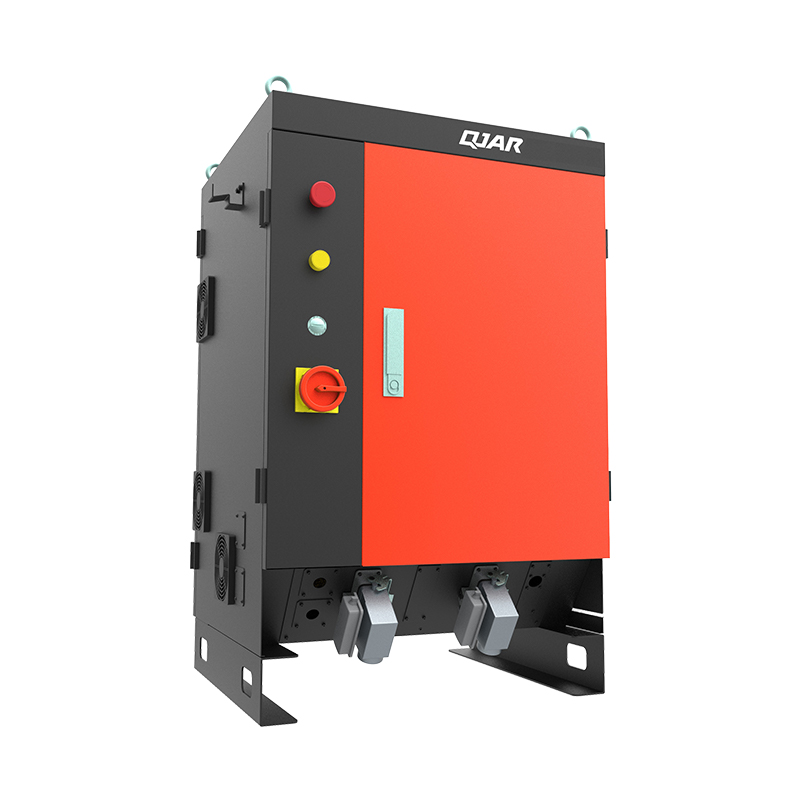

| Cabinet Size | 580*650*960mm | |
| Cabinet Weight | 130kg | |
| Source | Three-phase four-wire | |
| Installing Form | Ground Mounted/ wall mounted | |
